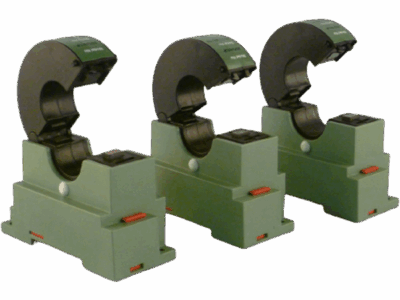

Our ASC451LP Split Core AC Input Transducer – with the benefits of being both DIN rail mountable or surface. As well as utilising a split-core design to allow for quick and simple retrofitting. It’s loop powered technology reduces wiring and improves efficiency by not relying on a separate power source.
The AC transducers have been designed for use within a variety of current monitoring tasks – from fan to motor to heating! It’s also perfect for general AC current signal conditioning. Our transducer is fully approved by Network Rail (086/036401) and has been praised for its non-intrusive monitoring. Suitable for SIL 1 & SIL 2 rated (IEC61508-2) safety instrumented system (SIS) loop monitoring applications, as 1oo1 architecture (HFT:0)
Their unique snap closed design allows easy connection around conductors and has a current input span which can be specified in the ranges of: 0 -20A, 0-30A, 0-40A, 0-50A, 0-100A, 0-200A, 0-300A.
All AMELEC manufactured instruments are supplied calibrated to customer requirements, calibration certificates traceable to national standards are available on request at time of order.
Storage Temperature: -20°C +70°C
Operating Ambient: -15°C to +55°C
Relative Humidity: 5% to 95% RH (Non-condensing)
Accuracy: <±0.2%
Linearity: <±0.3%
