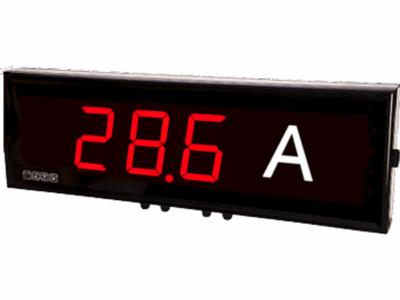

The APM489-LD-4-P is a 4″ High 4 Digit Large Display Panel Meter with 95-265Vac supply voltage suitable for a combination of process inputs. (12V / 24Vdc option available on request)
It’s a 102mm (4″) high 4 digit red LED high-brightness display for up to 50 metre viewing.(Other colours available on request.
The display can be calibrated as either 0 to 100.0% or in engineering units to suit applications. Display scaled at factory prior to shipment, although can be re-scaled using front panel pushbuttons if required.
Wall mounting as standard, Front panel mount option available on request.
Day Light viewing LED Display option available for Outdoor Applications
Our APM489-BAR-ALM is a I/V Input Slim Bargraph Indicator with Alarm Trip Points which is a non-microprocessor based display unit suitable for most process signals.
Our APM489-4-RL is a digital countdown timer with a 4x 20mm digit red LED high-brightness display. Contact closure input to illuminate the display digits & commence the countdown.
Our APM489-BAR-Slim-V is a Process I/V Input Slim Vertical Bargraph Indicator, suitable for either 1-5Vdc or 4-20mA process input signals.
Our APM489-BAR-36-V is a Process I/V Input Vertical Bargraph Indicator display unit, suitable for either 1-5V or 4-20mA process input signals (Horizontal mounting option available on request)
