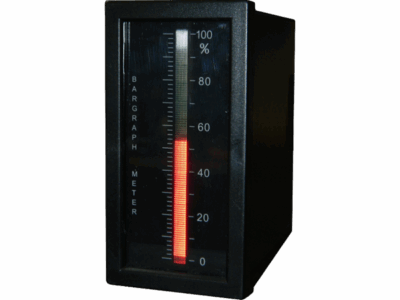

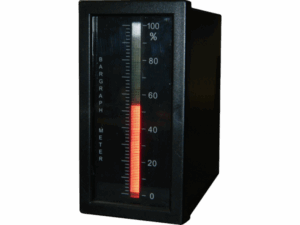

The APM489-BAR-V is a Process V/I Input Vertical Bargraph Indicator which is a non-microprocessor based display unit suitable for most process signals. (Horizontale mouting option available on request)
It has a 101 dash red LED high-brightness standard display of 0-100%. (other scaling available on request)
- Red LED high-brightness Display
- Supply options: 10-28Vdc / 86-264Vac
Environmental Condition
Mounting/Dimensions
Environmental Condition
Storage Temperature: -30°C to +70°C
Operating Ambient: -20°C to +60°C
Relative Humidity: 20% to 85% RH
Mounting/Dimensions
Weight: <370g
