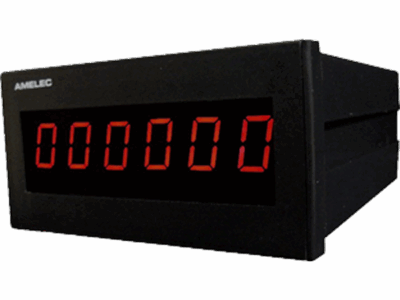

Our APM489-6X-2-RS485 is a non-smart/non-microprocessor Digital Pulse Counter with Isolated RS485 Retransmission of count displayed.
Input; Volt Free Contact Closure (5/12/24Vdc pulse, other input types available on request)
Display;Â The unit has a 6 digit red LED counter, with Local Reset facility on Front Fascia.
Isolated RS485 Output; Retransmission of the displayed count.
Dual Channel Pulse input with 90° Phase shift, channel 1 referenced to detect direction, Up/Down count.
Storage Temperature: -20°C to +70°C
Operating Ambient: -10°C to +60°C
Relative Humidity: 5% to 95% RH
IP Rating: IP50 as standard. (IP66 front water tight clear rubber cover option available if required)
Dimensions: 48h x 96w x 110d mm (Panel cut out; 45h x 93w mm)
Mounting: Front of Panel
Our APM489-4 is a 4 digit contact closure start input non-microprocessor 15 minute countdown timer with a red LED high-brightness display.
Our ADT131DITXP is a Cycle Timer Input Single Output Trip Amplifier with Hours Run Display suitable for use in application for SIL1 and SIL2 (1oo1 architecture) with a supply voltage…
Our process input combined multiplier and divider can take a multitude of inputs and outputs to apply to a specified equation
