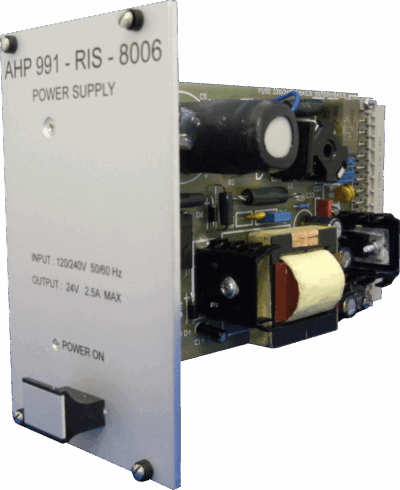

The AHP991-RIS-8006 is our high current power supply suitable for SIL 1, 2 & 3 applications. The AHP991-RIS-8006 is also a replacement for the original Rochester RIS 8006 power supply meaning that it is a direct plug-in replacement for existing RIS 19” racks.
- Supply voltage 115V or 230Vac (±10%)
- Output 24Vdc @ up to 2.5A
- Consumption 75VA (@ 2.5A output)
Environmental Condition
Mounting/Dimensions
Environmental Condition
Storage temperature: -40°C to +70°C
Operating ambient: -15°C to +55°C
Relative Humidity: 5% to 95% RH (Non-Condensing)
Mounting/Dimensions
Card 3U high 16E wide
Mounting 19″ rack / 84E wide (See rack GA for details)
Card weight <500g
