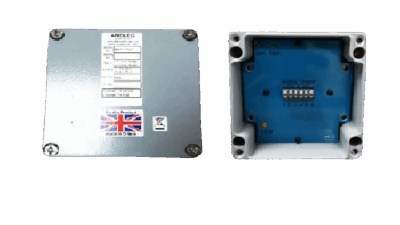

The AGS1126X-EP is an externally powered Heading Rate of Change Transmitter suitable for applications requiring precise rate of change of heading measurements along a single axis under harsh circumstances and returning to a 4-20mA output signal.
Our inclinometer comes with the AMELEC 2 year warranty and is suitable for SIL 1 & SIL 2 rated (EN 61508-2) safety instrumented system (SIS) loop monitoring applications, as 1oo1 architecture (HFT:0)
This unit is suitable for areas such as aviation, marine, automotive & transportation systems; vehicles, aircraft, ships & vessels, as well as any other special operations safety systems.
Storage Temperature: -40°C to +70°C
Operating Ambient: -15°C to +55°C
Relative Humidity 5% to 95% RH (Non-Condensing)
Linearity: <±1%
Accuracy: <±1%
Response time:Â Typically <1 Second
Mounting; Surface
Enclosure: 122w x 122h x 90d mm
Fixing holes: 82w x 106h mm (Ø 7mm)
