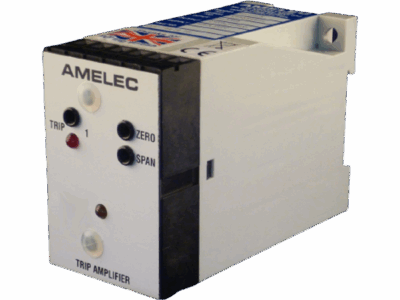

The ADT142DI is our potentiometer dual output trip amplifier suitable for SIL 1, 2 & 3 applications.
- Input is any potentiometer, Slidewire or Resistance variation range up to 60,000Ω.
- Each Trip Relay Output has is a set of changeover contacts (S.P.C.O) rated at 250VAC, 2A, 100VA resistive
- Isolation 1000V RMS. Input/Contacts-Contacts/Supply/Earth
Environmental Condition
Performance
Mounting/Dimensions
Environmental Condition
Storage Temperature: -40°C to +70°C
Operating Ambient: -15°C to +55°C
Relative Humidity 5% to 95% RH (Non-Condensing)
Performance
Trip settability: ±0.1%
Trip repeatability: ±0.1%
Response time: <400mS (0-100% input step change)
Mounting/Dimensions
Enclosure: 50w x 75h x 110d mm
Mounting: Din Rail (TS35) or Surface
