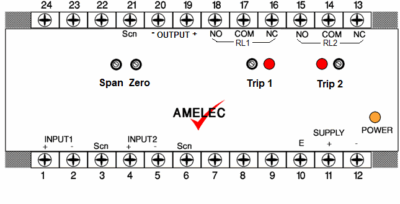

The ADT139X-M2-AO-DC is our Combi Deviation Trip/Differential Transmitter suitable for SIL 1 and SIL 2 rated (EN 61508-2) safety instrumented system (SIS) loop applications, as 1oo1 architecture (HFT:0)
- Inputs (2x 4-20mA); The active input ports each include the two-wire loop excitation voltage (24Vdc @ 22mA) to power the field transmitters.
- Each Trip Relay output is a set of SPCO contacts, rated at 250Vac, 2A, 100V resistive. Trip 1= A>B High, Trip 2= A>B Low, with deviation set points adjustable via 15-turn blindset potentiometers.
- Isolation 1000V RMS. Input/Output/Contacts/Contacts/Supply
Environmental Condition
Performance
Mounting/Dimensions
Environmental Condition
Storage Temperature: -40°C to +70°C
Operating Ambient: -15°C to +55°C
Relative Humidity: 5% to 95% RH (Non-Condensing)
Performance
Trip settability: ±1%
Trip repeatability: ±0.1%
Response time: <200mS (0-100% step change)
Mounting/Dimensions
Enclosure: 152w x 81h x 137d mm
Mounting: Din Rail (TS35)
