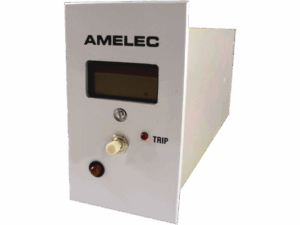

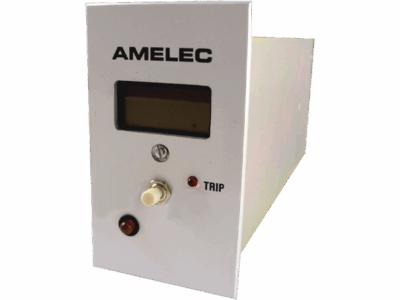

Our ADT131DITXP is a Cycle Timer Input Trip Amplifier with Hours Run Display suitable for use in application for SIL1 and SIL2 (1oo1 architecture) with a supply voltage of 24Vdc (Other ranges available on request).
The instrumentation is manufactured within our high impact strength, polycarbonate din rail & surface mounting enclosure.
- Input is any volt free contacts
- Output is 1 SPCO contact as std
Environmental Condition
Performance
Mounting/Dimensions
Environmental Condition
Storage Temperature: -40°C to +70°C
Operating Ambient: -15°C to +55°C
Relative Humidity 5% to 95% RH
Performance
Trip settability: ±1%
Trip repeatability: ±1%
Response time: <25mS
Mounting/Dimensions
Enclosure: 50w x 75h x 146d mm
Weight: <300g
Moutning is front of panel
