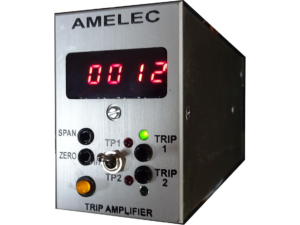

Our ADT112DI Thermocouple Dual Trip Amplifier with Display is suitable SIL1, SIL2 & SIL3 rated safety loop applications (IEC61508-2).
We can provide several add-on options such as upscale on the open circuit, Bi-colour red/green LED, RFI protection (IEC61000-4-3) and more.
The instrumentation is manufactured within our high impact strength, polycarbonate din rail & surface mounting enclosure.
- Input is any mV signal developed from any thermocouple type J, K, N, R, S or T, with a minimum 4mV span as std
- Trip output is a set of changeover contacts (D.P.C.O) rated at 250VAC, 2A, 100VA resistive
- Display allowing for display ofinput range and trip set points
Environmental Condition
Performance
Mounting/Dimensions
Environmental Condition
Storage Temperature: -40°C to +70°C
Operating Ambient: -15°C to +55°C
Relative Humidity 5% to 95% RH
Performance
Trip settability: ±1%
Trip repeatability: ±0.1%
Mounting/Dimensions
Enclosure: 50w x 75h x 110d mm
Din Rail (TS35) or Surface by corner fixing holes
