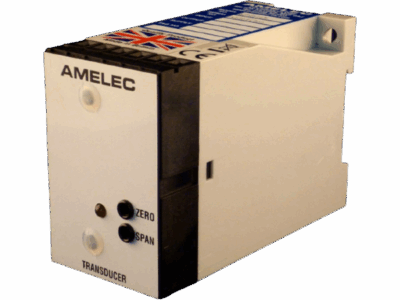

Our range of AC Voltage Transducers are suitable for various combinations of AC inputs & DC outputs and are also suitable for use in SIL1, SIL2 and SIL3 rated safety loop applications.
An add-on option of having it RFI protected to the latest standard of IEC61000-4-3 is available on request.
Standard input of 0-150V or 0-600V with intermediate ranges available on request at no extra cost and comes with our standard 10 year warranty.
Standard outputs are any process current or voltage signals.
Environmental Condition
Performance
Mounting/Dimensions
Environmental Condition
Storage Temperature: -40°C to +70°C
Operating Ambient: -15°C to +55°C
Relative Humidity 5% to 95% RH
Performance
Accuracy: <±0.2%
Linearity: <±0.1%
Mounting/Dimensions
Enclosure: 50w x 75h x 110d mm
Din Rail (TS35) or Surface by corner fixing holes
