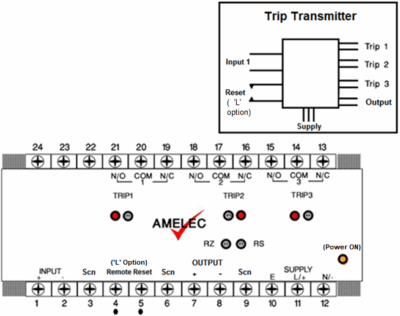

The ADM233X-3 is our Din Rail Mounted Process Signal Trip Transmitter which is suitable for SIL 1 & 2 rated (IEC61506) safety instrumented system (SIS) loop applications, as 1oo1 architecture (HFT:0)
Input is any current or voltage (DC) signal that can be terminated in a PI network to produce a 400mV span
Each trip output is a set of changeover contacts, rated at 250VAC, 2A, 100VA (resistive)
Environmental Condition
Performance
Mounting / Dimensions
Environmental Condition
Storing temperature: -40°C to +70°C
Operating Ambient: -15°C to +55°C
Relative Humidity: 5% to 95% RH (Non-Condensing)
Performance
Accuracy/Linearity: ±0.1%
Isolation: 1000V RMS – Input/Output/Contacts-Contacts/Supply/Earth
Mounting / Dimensions
Mounting: Din Rail (TS35)
Enclosure: 152w x 81h x 137d mm
