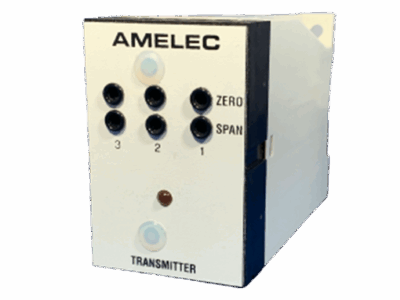

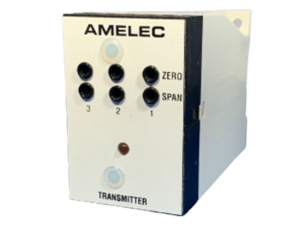

Our ADM231MX-3 is a Three-way Signal Converter/Isolator/Splitter that is suitable for any process input and SIL 1 and SIL 2 rated (IEC 61508-2) safety loop applications, as 1oo1 architecture.
Input; Typically 4-20mA, with an active input port, integral 24Vdc 2-wire loop excitation to power the field transmitter.
Output; Different mA / Voltage ranges for each output channel may be specified; DC current ranges up to 22mA, voltage ranges up to 10Vdc. Typically 3x 4-20mA, current sink ports up to 22mA may be specified (externally powered, up to 28Vdc max)
Storage Temperature: -40°C to +70°C
Operating Ambient: -15°C to +55°C
Relative Humidity: 5% to 95% RH (Non-Codensing)
Accuracy/Linearity: ±0.1%span
Response time: typically <100mS
Dimensions: 50w x 75h x 110d mm
Mounting; Din Rail (TS35) or Surface by corner fixing holes
