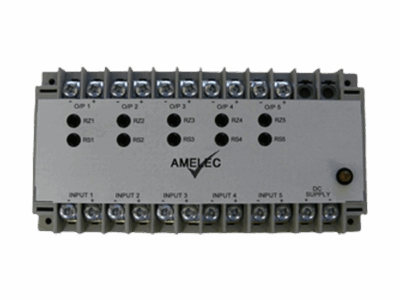

The ADM230X-4 is a Four Channel Signal Isolator/Converter with up to 4 inputs and outputs available and it is suitable for use with SIL1, SIL2 and SIL3 rated safety loop applications.
It also has the option of having RFI protection as a add-on option to the latest standard of IEC61000-4-3.
- 4 Input channels, all are any current or voltage drives that can be terminated in a PI network to produce a 400mV span
- Output channels are 1 repeat signal per input channel
Environmental Condition
Mounting/Dimensions
Environmental Condition
Storage Temperature: -40°C to +70°C
Operating Ambient: -15°C to +55°C
Relative Humidity 5% to 95% RH
Mounting/Dimensions
Enclosure: 152w x 81h x 137d mm
