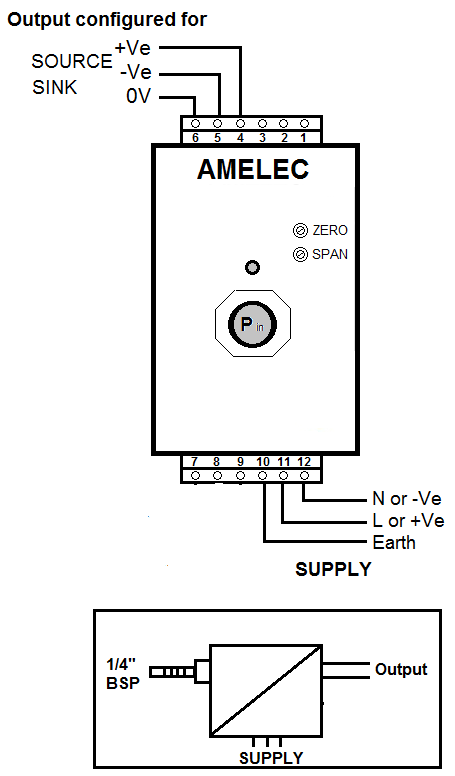

The ADM230MPX is our surface mounting pressure input signal transmitter / isolator suitable for SIL 1, 2 & 3 applications.
- Input 1/4″ BSP parallel thread connection. Pressure Ranges from 0-500mbar up to 0-1500 bar.
- Output is any standard process current or voltage signal
Environmental Condition
Performance
Mounting / Dimensions
Environmental Condition
Storing temperature: -40°C to +70°C
Operating Ambient: -15°C to +55°C
Relative Humidity: 5% to 95% RH
Performance
Accuracy: <±0.25%
Isolation: 500Vdc Input/Output/Supply/Earth
With an over pressure limit of twice the rated pressure range.
Mounting / Dimensions
Mounting: Din Rail (TS35) or Surface by corner fixing holes
Enclosure: 50w x 75h x 150d mm
Surface mounting plate: 50w x 130h mm
