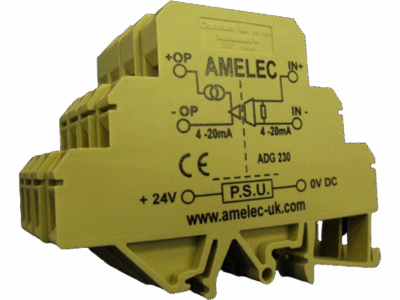

The innovatively integrated ADG230-SINK is a SINK Ultra Compact Signal Isolator is suitable for use in SIL1, SIL2 and SIL3 rated safety loop applications.
The ADG230-SINK is supplied as a 4-20mA process input and output range as standard, with 1 to 5Vdc options available.
Versatile within numerous process industries, suitable for either TS32 G Rail or TS35 DIN Rail mounting.
Ultra Compact Design within a 10mm wide clip on terminal style enclosure.
Environmental Condition
Mounting/Dimensions
Environmental Condition
Storage Temperature: -40 to +70°C
Operating Ambient: -5°C to +55°C
Relative Humidity: 5% to 95% RH (Non-Condensing)
Mounting/Dimensions
Enclosure: 10w x 88.5h x 69d mm
Mounting: Din Rail (TS35) or G Rail (TS32)
