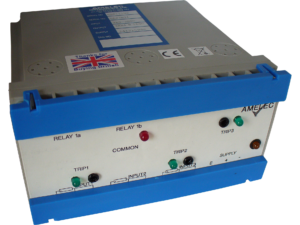

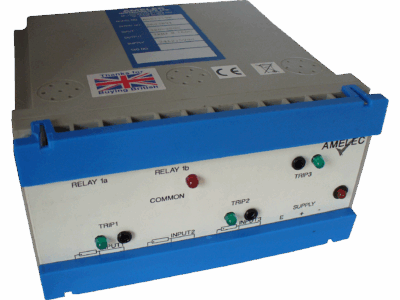

The ADC314X-4 is our four input summator unit with dual additional trip set points configurable upon request suitable for SIL 1, 2 & 3 applications
- Input can be any DC Current/Voltage that can be specified within the range on the datasheet given
- Output representing the total Sum of 4 x input signals, equally weighted or with internal scaling if required.
Environmental Condition
Performance
Mounting/Dimensions
Environmental Condition
Storage Temperature: -40°C to +70°C
Operating Ambient: -15°C to +55°C
Relative Humidity: 5% to 95% RH
Performance
Accuracy / Linearity: < ±0.1% span
Response time: Typically < 200mS (0-100% step)
Mounting/Dimensions
Enclosure: 152w x 81h x 137d mm
Mounting: Din Rail (TS35)
