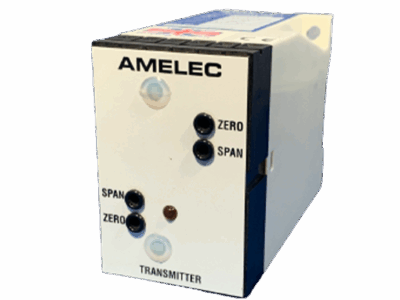

The ADC311X-2 is our dual input/output channel scale & bias signal transmitter / isolator suitable for SIL 1, 2 & 3 applications.
- Input is any DC current within the range on the given datasheet
- Outputs are different uA / mA / Voltage for each output, each can be specified
Environmental Condition
Performance
Mounting/Dimensions
Environmental Condition
Storage Temperature: -40°C to +70°C
Operating Ambient: -15°C to +55°C
Relative Humidity: 5% to 95% RH
Performance
Accuracy/Linearity: <±0.1%
Response time: <100mS (0-100% input step change)
Supply regulation: ±10%
Supply consumption: <3VA
Mounting/Dimensions
Enclosure: 50w x 75h x 110d mm
Mounting: Din Rail (TS35) or Surface by corner fixing holes
Weight: <300g
