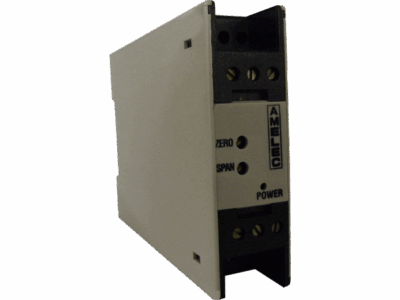

The ASM220 is our mV Signal transmitter/isolator suitable for SIL 1, 2 & 3 applications
- Input is from PT100 RTD with 2 or 3 Wire connection as standard, any temperature range with a span greater than 30°C
- The output current source can be up to 20mA with a drive voltage of 20V. The voltage source can be up to 10V’s, maximum drive 20mA.
Environmental Condition
Performance
Mounting/Dimensions
Environmental Condition
Storage Temperature: -40°C to +70°C
Operating Ambient: -15°C to +55°C
Relative Humidity: 5% to 95% RH
Performance
Accuracy: <±0.1 mV Span
Linearity: <±0.1 mV Resistance Span
Mounting/Dimensions
Enclosure: 22.5w x 95h x 110d mm
Mounting: Din Rail (TS35 top-hat style rail)
