The AEC240X is our process input I/V (DC) current or voltage signal generation output generator suitable for generating Process Current or Voltage (DC) output signals.
- Suitable for generating Process Current or Voltage (DC) output signals.
- True universal AC/DC supply voltage 21V through 265V AC/DC
- Output signal is 4–20mA set by the fifteen–turn front fascia blindset potentiometer.
- The current source can be up to 21mA with a drive voltage of 12V. The voltage source can be up to 11V’s, maximum drive 5mA.
Environmental Conditions
Mounting & Dimensions
Environmental Conditions
Storing Temperature -20°C to + 70°C
Operating Ambient: 0°C to +55°C
Relative Humidity: 5% to 95% RH
Mounting & Dimensions
Mounting: Din Rail (TS35)
Dimensions:Â 22.5h x 75w x 105d mmÂ

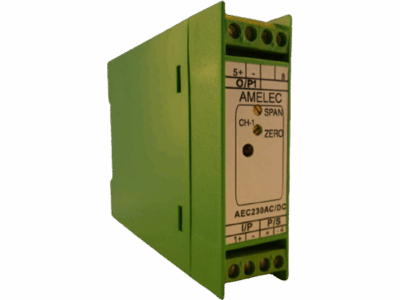

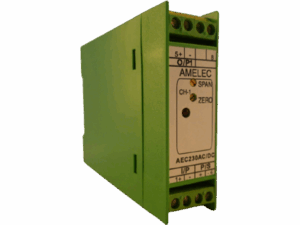

Our AEC230X is a Din Rail Mounted Contact Closure Output Signal Generator with a true universal AC/DC supply voltage range 21V through 265V AC or DC. The AEC230X is suitable…
