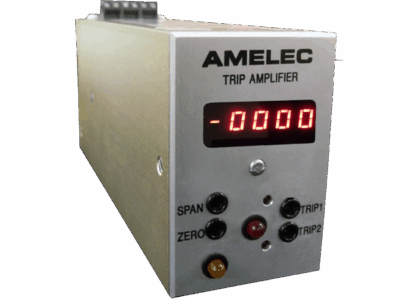

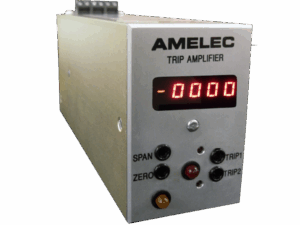

Our ADT135DI is Pump/Level Control Input Signal Trip Amplifier, with a duel trip on/off system, with Display that is suitable for SIL1, SIL2 and SIL3 rated safety loop applications and any process input.
This unit has an optional RFI Protection to IEC61000-4-3 (<10V/m) available on request.
- Input is any process current or voltage drive that can be terminaled in a PI network to produce a 400mV span
- The output is for any typical high trip application
Environmental Condition
Mounting/Dimensions
Environmental Condition
Storage Temperature: -40°C to +70°C
Operating Ambient: -15°C to +55°C
Relative Humidity: 5% to 95% RH
Mounting/Dimensions
Enclosure: 50w x 75h x 145d mm
Mounting: Din Rail (TS35) or Surface by corner fixing holes
