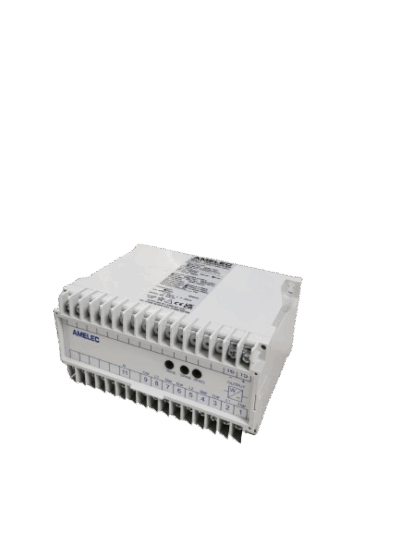

The ADP416 3-Phase 4-Wire Unbalanced Watt/Power Transducer is suitable for combinations of process inputs.
- Standard input current 0-1 or 0-5Amps, Direct or via CT’s. Standard input voltage 63V, 115V, 230V or 415Vac, Direct or via CT’s.
- Output is any standard process current or voltage.
- Current source up to 20mA, Drive voltage 24Vdc, Voltage source up to 10V. Max Current 20mA
Environmental Condition
Performance
Mounting/Dimensions
Environmental Condition
Storage Temperature: -40°C to +70°C
Operating Ambient: -20°C to +60°C
Relative Humidity: 0 to 95% RH
Performance
Accuracy; <+0.25% span
Mounting/Dimensions
Mounting: Din Rail (TS35)
Enclosure: 150w x 70h x 112d mm
